Multislice (Fast)

Updated: 16 Mar 2026

This notebook will give a general tutorial on multislice simulation in abTEM. In comparison to all simulation discussed in the thesis, this notebooks will use the Fourier method (9) to compute the multislice much faster. To compute a multislice simulation we will outline the following steps:

  1. Define sample (using ASE)

  2. Convert sample into potential

  3. Define incident beam (planewave, converged probe)

  4. Run multislice simulation

import abtem
import ase
import matplotlib.pyplot as plt
import numpy as np
STO_crystal = ase.Atoms(
    "SrTiO3",
    scaled_positions=[
        (0.0, 0.0, 0.0),

        (0.5, 0.5, 0.5),

        (0.5, 0.0, 0.5),
        (0.5, 0.5, 0.0),
        (0.0, 0.5, 0.5),
    ],
    cell=[3.91270131, 3.91270131, 3.91270131, 90, 90, 90],
    pbc=True
)
# abTEM multislice requires crystals to be orthogonal
STO_orthorhombic = abtem.orthogonalize_cell(STO_crystal)
fig,ax = plt.subplots()
abtem.show_atoms(STO_orthorhombic,plane='yz',scale=0.5,tight_limits=True,show_periodic=True,ax=ax)
(<Figure size 640x480 with 1 Axes>, <Axes: xlabel='y [Å]', ylabel='z [Å]'>)
<Figure size 640x480 with 1 Axes>

Crystal potential

sampling = 0.1 #Angstrom
slice_thickness = 0.5 #Angstrom
thickness = 48 #unit cells
sample_size = (1,1,thickness)
energy = 20e3 #eV
unit_cell_potential = abtem.Potential(
            STO_orthorhombic,
            sampling=sampling,
            parametrization="lobato",
            slice_thickness=slice_thickness,
            projection="finite",
        )

potential = abtem.CrystalPotential(
    unit_cell_potential,
    repetitions=sample_size,
)

Planewave

planewave = abtem.PlaneWave(energy=energy).match_grid(potential)

detector = abtem.PixelatedDetector(max_angle=None)

Running the simulation

exitwave_pw = planewave.multislice(
    potential=potential,
    detectors=detector,
    pbar=True,
    lazy=False
    )
Loading...

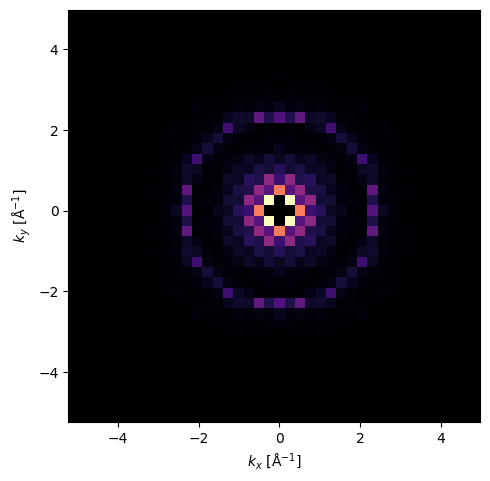

exitwave_pw.block_direct().show(
    cmap='magma',
    power=0.5,
    vmin=0
)
<abtem.visualize.visualizations.Visualization at 0x1325ec6e0>
<Figure size 640x480 with 1 Axes>

CBED (Converged Beam Electron Diffraction)

For a CBED simulation, instead of using a planewave we use a abTEM probe object which has an aperture to allow different beam angles up to a certain maximum. We set that maximum angle using the semiangle_cutoff parameter.

semiangle = 20

probe = abtem.Probe(energy=energy, semiangle_cutoff=semiangle).match_grid(potential)

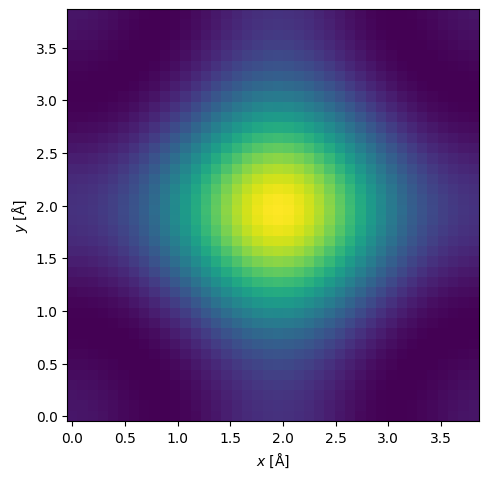

probe.show()
Loading...
<abtem.visualize.visualizations.Visualization at 0x1325ecf20>
<Figure size 640x480 with 1 Axes>

The plot above shows the probe extending all the way to the edges of the simulation grid. This will cause incorrect results since the periodic boundary conditions abTEM uses will cause values to wrap over. To fix that we extend the simulation grid by repeating the crystal potential in the x and y directions. This was not necessary for the planewave simulation since a repeated crystal in the x and y directions would simply repeat the planewave exitwave.

potential_cbed = abtem.CrystalPotential(
    unit_cell_potential,
    repetitions=(8,8,thickness),
)
semiangle = 20

probe = abtem.Probe(energy=50e3, semiangle_cutoff=semiangle).match_grid(potential_cbed)

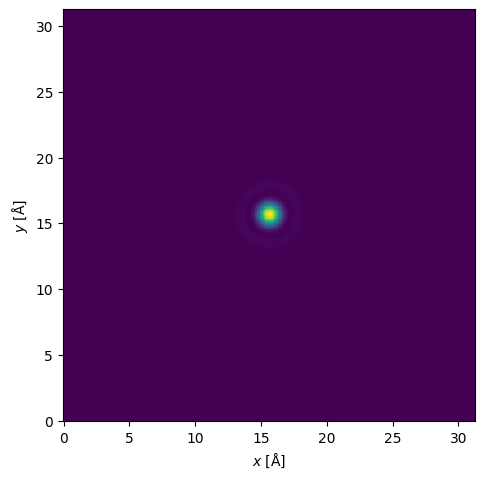

probe.show()
Loading...
<abtem.visualize.visualizations.Visualization at 0x1325c9fa0>
<Figure size 640x480 with 1 Axes>

Now the probe is appropriately sized and we can proceed with the simulation

exitwave_probe = probe.multislice(
    potential=potential_cbed,
    detectors=detector,
    pbar=True,
    lazy=False
    )
Loading...
exitwave_probe.show(
    cmap='magma',
    power=0.5,
    vmin=0,
    cbar=True
)
<abtem.visualize.visualizations.Visualization at 0x132eef5c0>
<Figure size 640x480 with 2 Axes>

PACBED (Position Averaged CBED)

Lastly we will cover PACBED scans. Since at higher energies the probe size decreases even to a size smaller than the unit cells, there is a position dependence on the final exit wave. Positioning the probe directly above a heavy atom will create a different exit wave than if it were positioned somewhere between the atoms (viewed along the optical axis). Therefore it will be interesting to scan over a range of probe positions and average the exitwaves at each position which creates a final image. There is one small problem with this approach which is easily resolved: because our simulation is fully elastic without backscattering effects taken into account (See Fully Corrected MS), the average of every scan position will be the same. To deal with this we can average over a specific region of the detector. For this we use a annular detector which integrates over a region between two angles. This gives us a measure of how much scattering is happening. This in turn tells us a lot about the crystal. Directly above a heavy atom you expect more scattering than above mostly empty space. As explained in Section. STEM, the PACBED scans gets blurrier at lower energies since the probe size gets physically larger. So for this demonstration we will increase the probe energy even though this thesis is mainly focussed on lower energy simulations.

haadf = abtem.AnnularDetector(inner=60, outer=None)

grid_scan = abtem.GridScan(
    start=[0, 0],
    end=(STO_orthorhombic.cell[0,0]*1, STO_orthorhombic.cell[1,1]*1),
    sampling=probe.aperture.nyquist_sampling,
    potential=potential_cbed,
)

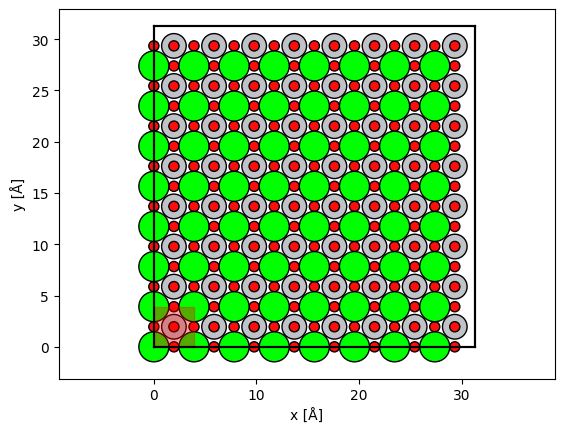

fig, ax = abtem.show_atoms(STO_orthorhombic*(8,8,1))
grid_scan.add_to_plot(ax)
<Figure size 640x480 with 1 Axes>
measurements = probe.scan(potential_cbed, scan=grid_scan, detectors=haadf, lazy=False, pbar=True)
Loading...

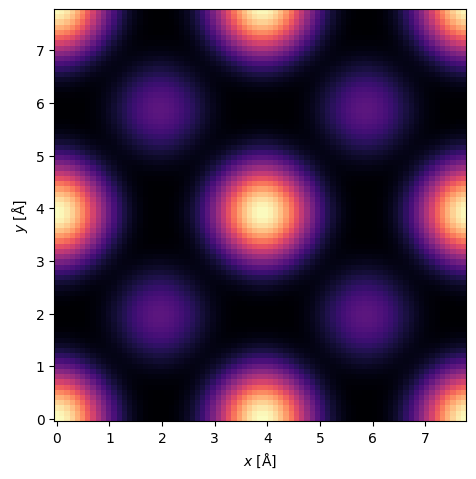

measurements.tile((2,2)).interpolate(sampling=0.1).show(cmap='magma')
<abtem.visualize.visualizations.Visualization at 0x131fbc680>
<Figure size 640x480 with 1 Axes>
